🔷 Fresnel Lenses

Compact Power, Precision Performance – Custom Fresnel Lens Manufacturing

Fresnel lenses condense the functionality of conventional curved optics into an ultra-thin profile. By segmenting the lens surface into concentric rings, Fresnel designs offer lightweight, low-volume alternatives to thick plano-convex or aspheric lenses—ideal for optical systems that demand compactness without sacrificing performance.

At Yighen Ultra Precision, we specialize in the design, prototyping, and volume production of Fresnel lenses in plastic and glass, offering both standard and custom geometries for illumination, imaging, sensing, and projection applications.

🔹 Why Choose Fresnel Optics?

Fresnel lenses are engineered to reduce material thickness and weight while maintaining optical power. Compared to conventional lenses, they offer:

Ultra-thin form factors
Lower material costs
Large-area light collection or focusing
Flexible customization: linear, elliptical, convex, freeform

🔹 Types of Fresnel Lenses We Offer

Fresnel Lens Type	Description
Linear Fresnel Lens	Straight-line grooves for solar, light guides, and LED
Elliptical Fresnel	Optimized for beam shaping and collimation
Convex Fresnel Lens	Thin substitutes for bulky plano-convex lenses
Freeform Fresnel	Custom geometries for AR/VR, automotive optics, etc.
Diffractive Fresnel	Precision control of phase and focus for wavefront shaping

All designs are simulated in Zemax, LightTools, or Code V, ensuring system-level performance optimization before manufacturing.

🔹 Materials & Manufacturing Options

We machine and mold Fresnel lenses using a range of optical-grade plastics and glass, including:

PMMA (Acrylic) – Most common material for molded Fresnel lenses
PC / COP / APEL / ZEONEX / TOPAS – High-precision injection molding and diamond turning
Glass – For higher thermal resistance and environmental durability
Infrared Materials – For IR beam shaping applications (e.g., ZnS, CaF₂)

💡 Prototypes can be diamond turned from PMMA, COP, or APEL blocks before scaling to mold tooling and volume production.

🔹 Yighen’s Fresnel Lens Capabilities

Capability	Specification
Surface Accuracy (P-V)	≤ 0.10 µm (Ra ≤ 2.0 nm)
Minimum Groove Width	~10 µm depending on material & toolpath
Lens Diameter Range	2 mm – 300 mm (custom size on request)
TIR & Hybrid Designs	Support for homogenization, dual-surface optics
Injection Molding	In-house with custom optical mold core tooling
Optical Coating	Optional AR / DLC / IR coatings available

We manufacture Fresnel lenses for visible, near-infrared, mid-IR, and even specialty wavelengths depending on material.

🔹 Applications of Fresnel Lenses

Industry	Application Example
🔆 Solar Energy	Linear Fresnel collectors, concentrators
🔬 Imaging Systems	Optical magnifiers, thin-lens substitution
💡 LED Lighting	Light shaping, beam collimation, homogenization
🕶 AR/VR Devices	Pancake optics, folding paths
🚘 Automotive	LiDAR beam shaping, HUD projection optics
🧪 Sensing Systems	IR focusing optics, compact sensor modules

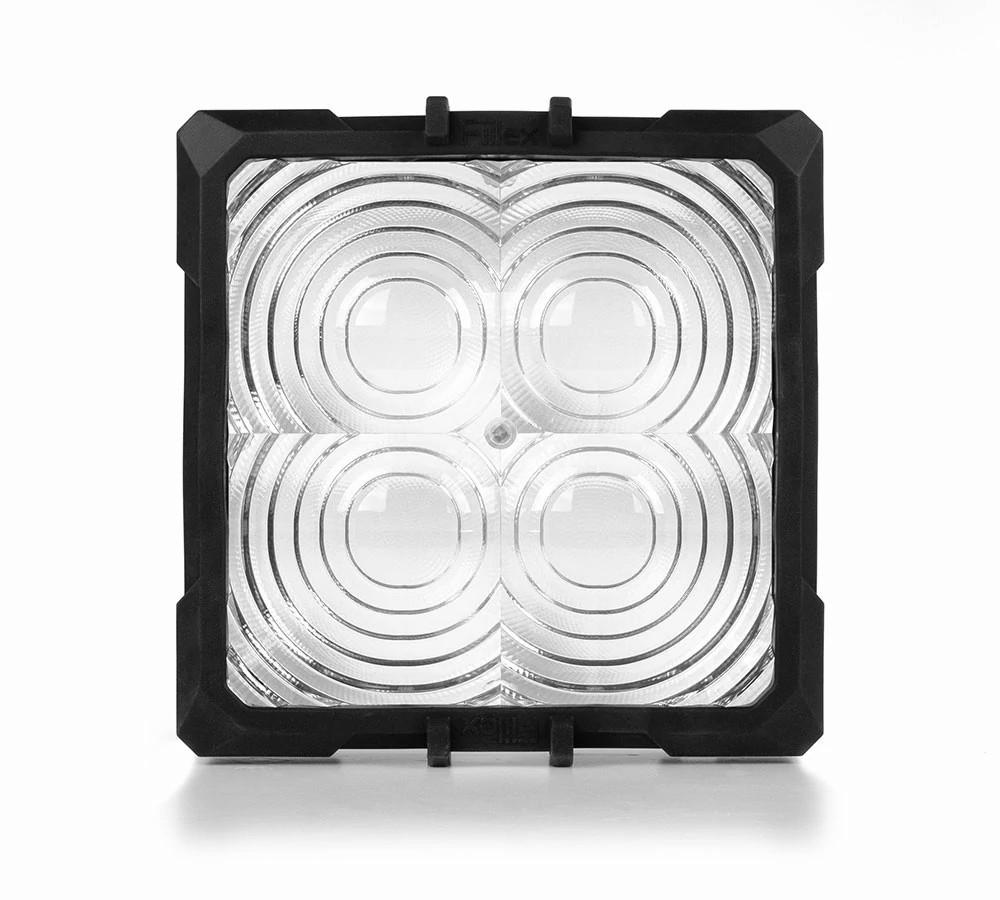

We support Fresnel arrays, collimators, and compound lens elements tailored for your specific optical system.

🔹 Our Key Equipment for Fresnel Lens Machining

Machine	Specialization	Specs
Toshiba ULC-100F(S)	Diamond turning of mold cores	Pv ≤ 0.01 µm, Ra ≤ 0.001 µm
NanoTech 250 / 650 FG	Freeform groove profile cutting	Ra ≤ 2.0 nm, programmable ≤ 0.01 nm
Toshiba ULG-100D(H3)	Ultra-precision grinding of glass lenses	Pv ≤ 0.03 µm, Ra ≤ 0.01 µm
Dongguan Molding Facility	In-house plastic molding, low-to-high volume	Custom mold insert design & validation

Tooling and production all take place at Yighen’s wholly owned injection molding factory in Dongguan, ensuring tight control over optical quality and delivery time.

❓ FAQ

Q: Can you help us improve the beam uniformity of our LED system using Fresnel lenses?
A: Yes, our optical engineers can simulate and prototype Fresnel patterns optimized for homogenization or collimation.

Q: Do you offer metal tooling for Fresnel injection molding?
A: Yes, we produce mold cores using single-point diamond turning for high-precision Fresnel grooves.

Q: How thin can your Fresnel lenses be made?
A: Depending on design, we can produce lenses as thin as 0.3–0.5 mm, including flexible film-type lenses upon request.

🔲 Lightweight, Scalable, and Efficient Optical Performance

Yighen specializes in the ultra-precision machining of Fresnel lenses — including linear, elliptical, and convex types — for applications in solar concentrators, LED optics, imaging systems, and projection modules.
We offer full design-to-fabrication support for Fresnel structures on PMMA, COP, PC, Zeonex, and other optical-grade materials, using fly-cutting and diamond turning technologies.

Whether you need custom groove profiles, off-axis shaping, or thin-profile integration, we’re ready to help.

🔵 Request a Fresnel Lens Quote or Technical Consultation
📩 Share your drawing, application, or target geometry — we’ll respond with manufacturing insights within 24 hours.

—

Want to explore surface roughness specs or sample types?
📄 Download Our Fresnel Lens Datasheet

Curious about how Fresnel lenses compare to traditional optics for your system?
