🔍 SWIR Imaging Lenses – Short-Wave Infrared Optics for Vision & Inspection | Yighen

High-performance SWIR lenses for industrial inspection, biomedical imaging, and spectral sensing.







👁️ Reveal What the Visible Spectrum Hides

Struggling to see through fog, plastic, or silicon packaging?

Yighen’s SWIR imaging lenses operate in the 0.9–1.7 µm spectrum (expandable to 2.5 µm), revealing hidden defects, subsurface layers, and material variations invisible to standard cameras.

Applications include:

• ✅ Machine vision & industrial inspection

• ✅ Solar cell / silicon wafer defect detection

• ✅ Medical diagnostics & pharmaceutical QA

• ✅ Food & agriculture hyperspectral analysis





💡 Why Choose Yighen SWIR Camera Lenses?

• 📈 >90% Transmission (AR-coated IR glass, fused silica, chalcogenide)

• 📏 <2% Distortion, matched to SWIR sensors (InGaAs, etc.)

• 🔬 High-resolution, MTF-optimized, up to 15 MP

• 🔒 Temperature & vibration resistant, precision locking

• 🧪 IR-transparent materials: ZnSe, Ge, Sapphire, Si, ZnS, Chalcogenide

• 🧩 Stock & custom SWIR lenses, full documentation included

• 🏅 ISO 9001/13485 certified, 30+ international patents





📊 Technical Specs – SWIR Imaging Lenses

Specification	Value / Range
Wavelength Range	0.9–1.7 µm (customizable to 2.5 µm)

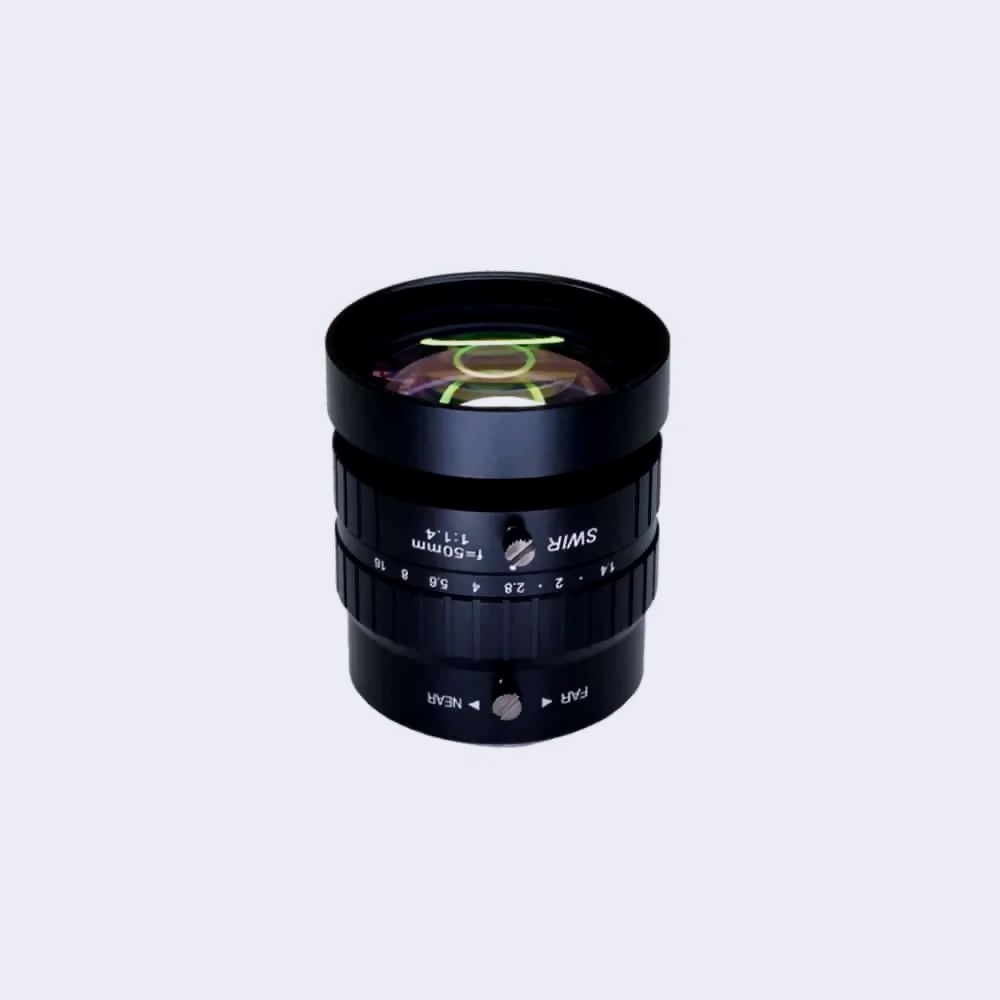

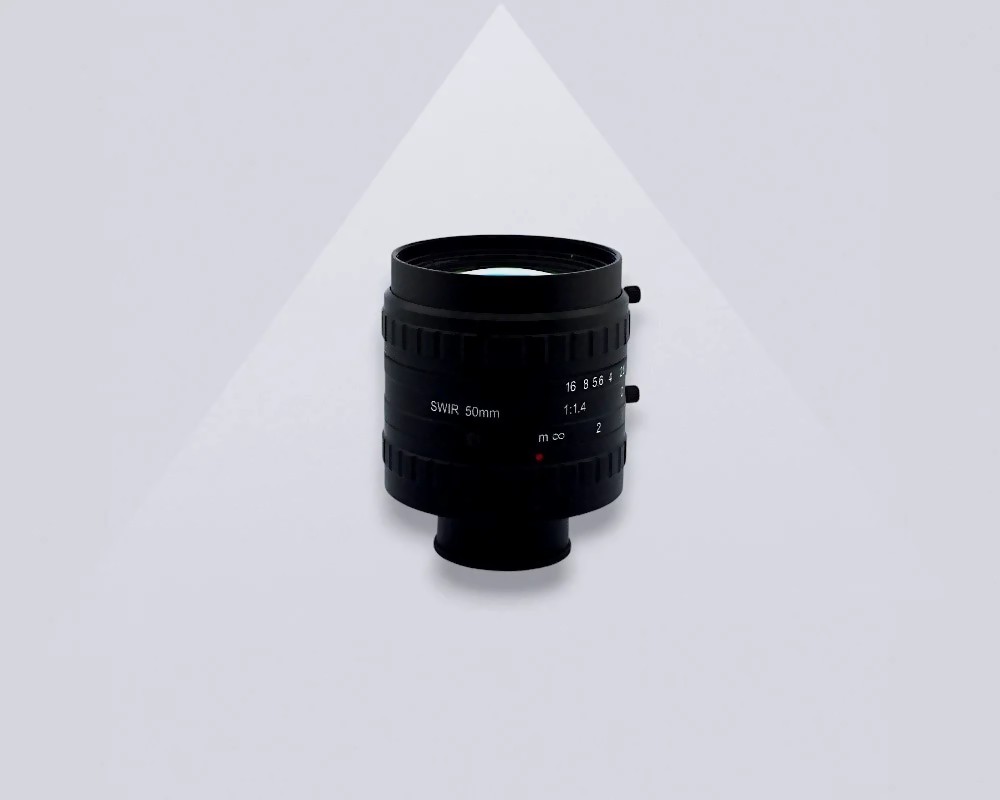

Focal Lengths	6 mm – 50 mm (standard: 12.5, 17, 25 mm)
F‑Number	F/1.4 – F/5.6
Distortion	Typically <2% (≤1.58% @12.5 mm)
Resolution	Optimized for 15 MP SWIR sensors
Sensor Compatibility	1/4″ to 1″, 4/3″, custom formats
Focus Distance	0.3 m for 12.5 mm & 25 mm models
Mount Type	C‑mount (custom options available)





📦 In-Stock SWIR Lenses

• 🔹 12.5 mm: Wide angle, TV distortion ≤1.58%

• 🔹 17 mm: Balanced resolution, standard format

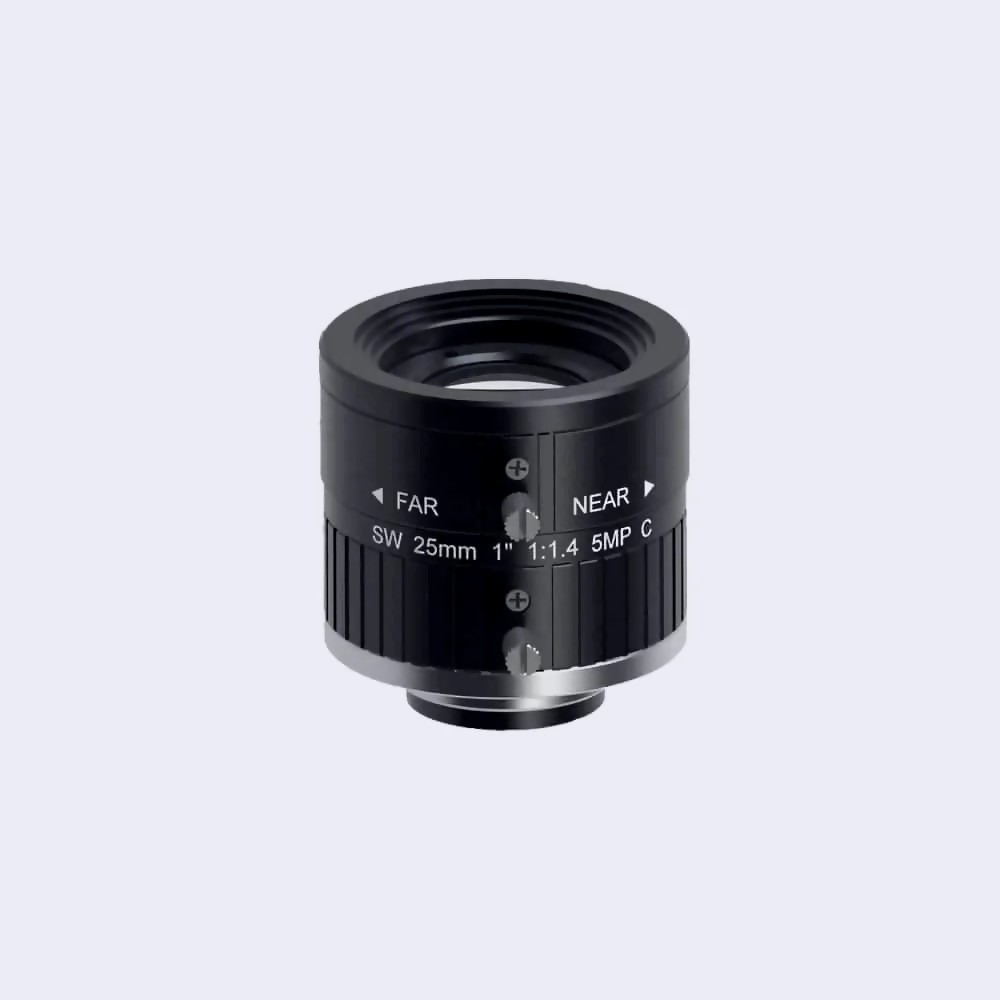

• 🔹 25 mm: Long range, 0.3 m close focus

🧊 All lenses feature broadband AR coating and low stray light design.





📷 Image Suggestions (alt text):

• “SWIR lens with AR coating for InGaAs camera”

• “Custom 17mm SWIR lens for short-wave infrared imaging”

• “Precision-machined chalcogenide glass SWIR optics”





🛠️ Custom SWIR Lens Design Services

Yighen engineers support full customization for:

• 🔍 Multispectral / hyperspectral bands (VIS + NIR + SWIR)

• 🍎 Defect detection in fruit, food, and seeds

• 🔧 Wafer & IC packaging inspection

• 💊 Medical packaging and pill sorting

• 🧬 Biomedical near-IR imaging

Our team optimizes aberrations, resolution, focal plane flatness, and packaging for SWaP-critical systems.





🌐 Global Engineering & Manufacturing

• 🏢 Hong Kong HQ – Optical system design, support

• 🏭 Dongguan Factory – Volume production & QA

• 🔧 Singapore Center – Ultra-precision optics lab

🛠️ Powered by NanoTech 650 FG (P-V ≤0.15 μm, Ra <3 nm) for freeform & IR optics machining.





📈 Case Study: Automotive Night Vision with SWIR

• 👤 Client: Tier-1 automotive supplier (Europe)

• 🌫️ Problem: Visibility loss under fog & dusk

• 🔍 Solution: Yighen 12.5 mm SWIR lens + InGaAs camera

• ✅ Result: 98% target detection accuracy at 40 m in low visibility





❓ SWIR Lens FAQs

Q1: Can I use visible lenses for SWIR?
⚠️ No. They lack IR transparency and introduce chromatic aberrations.

Q2: Do you support hyperspectral lens design?
✅ Yes. We cover 1.0–2.5 µm ranges with matched coatings and precision MTF.

Q3: Which materials are available?
🧪 ZnSe, Sapphire, Ge, Si, ZnS, Chalcogenide glass.

Q4: Typical lead time?
🚚 Stock: 1–2 weeks; Custom: ~4–6 weeks.

Q5: Environmental ruggedness?
🛡️ Yes. Lenses rated –40°C to +85°C, optional IP65 sealing.





📜 Certifications & Quality Assurance

• ✅ ISO 9001 & ISO 13485 certified

• 🧠 55+ years in advanced optical design

• 🌍 Trusted by clients in US, Germany, Japan, Israel

• 🔍 MTF, wavefront, transmission test reports on request







🌒 Custom SWIR Lens Design for 0.9–1.7μm Infrared Imaging

Yighen delivers optimized SWIR lens assemblies for inspection, machine vision, semiconductor, and anti-counterfeiting applications—designed for high transmission in the 900–1700nm range.

📩 Request a Custom SWIR Lens
Tell us your sensor, wavelength, and working distance—we’ll deliver a tailored solution with minimal chromatic shift and stray light.

📘 Access optical drawings and specs
Browse our Downloads for lens layouts, materials (Ge, Infrasil, ZnSe), and SWIR-specific transmission data.

🏢 Why Yighen?
Explore our end-to-end optical and mechanical capabilities at About Us.
