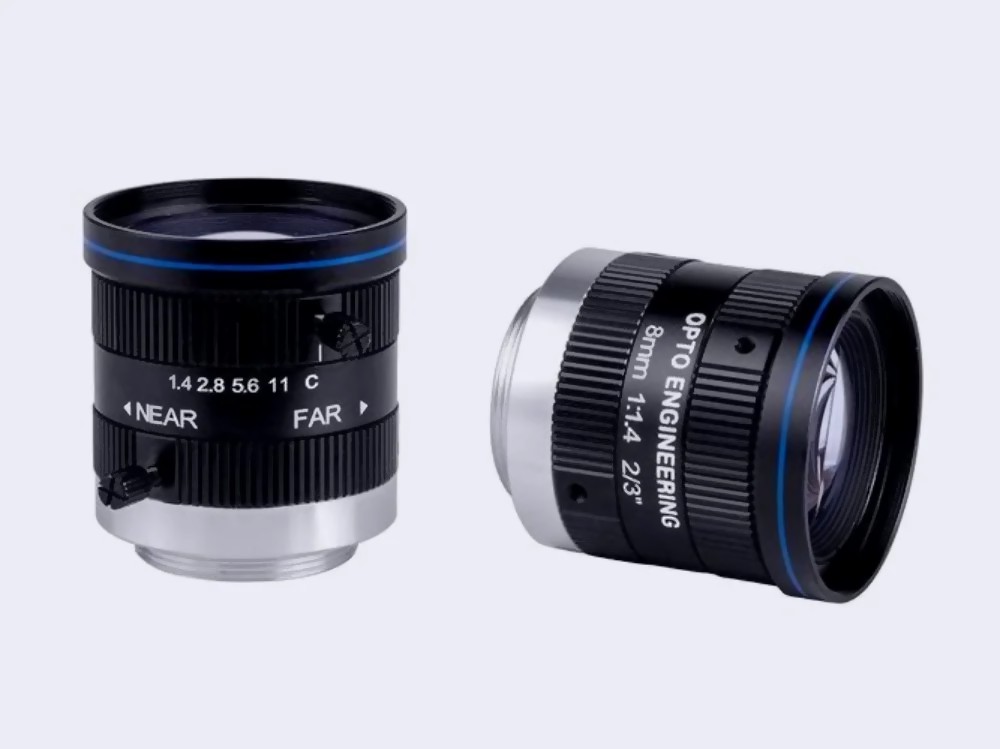

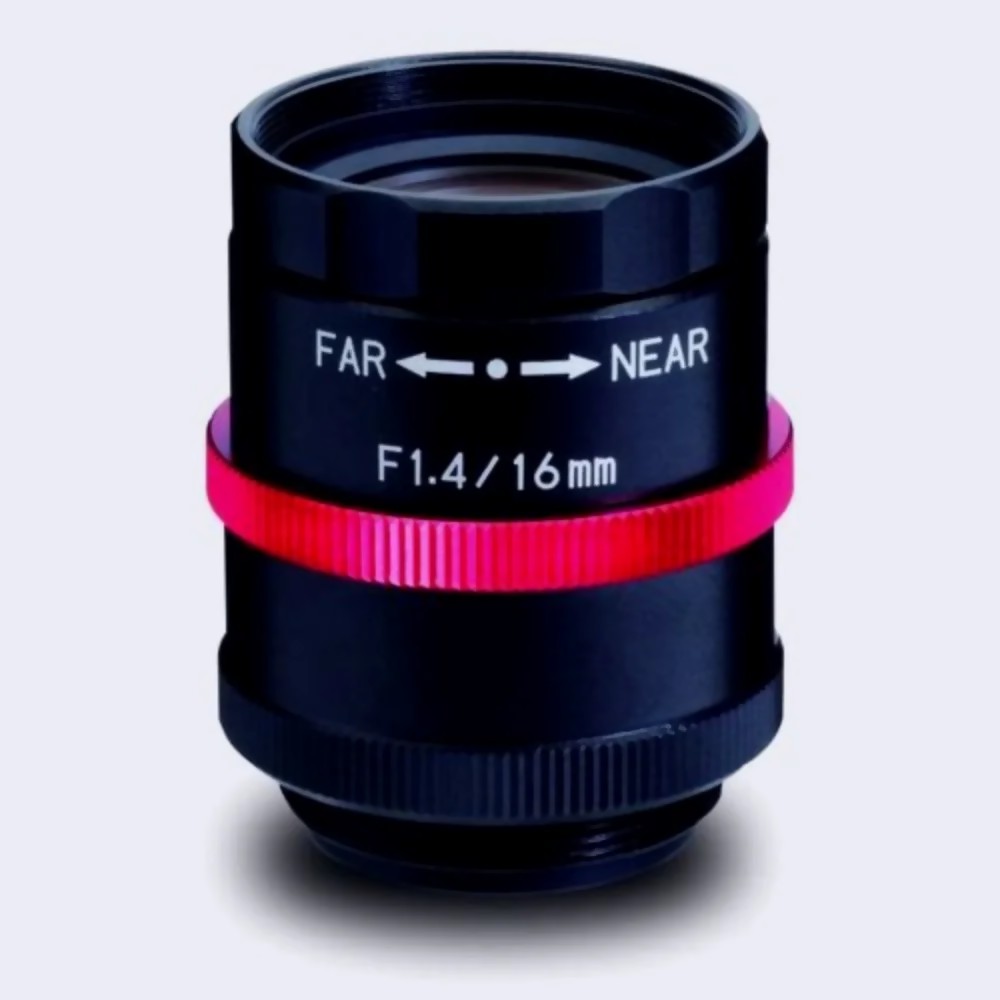

🔍 MegaPixel Lenses by Yighen

High-Resolution Lenses for Machine Vision & Precision Imaging

🌟 Designed for Detail — Optimized for Sensors

Yighen’s MegaPixel lenses are engineered to meet the optical performance demands of today’s high-resolution sensors. Whether for 2 MP, 5 MP, 8 MP,或 12 MP+ CMOS/CCD sensors, our lenses ensure exceptional sharpness, contrast, and uniformity across the entire image circle.

Ideal for machine vision, quality inspection, automation, medical imaging, and high-definition documentation, our megapixel lenses are available in both standard and custom configurations.

🔬 Key Features

• 📷 Up to 12+ Megapixel resolution

• 📏 Low distortion <0.5% (TV Distortion)

• 🔧 Focal length options from 4 mm to 75 mm

• 🔒 Lockable focus & iris for industrial stability

• ⚙️ Compact C-mount & M12 formats

• 🧪 IR-compatible materials & multi-coating options

• 🔩 Custom designs for telecentric, SWIR, or low F/# applications

📊 Technical Specifications (Typical Range)

🏭 In-House Design & Assembly Capabilities

As a vertically integrated manufacturer, Yighen ensures tight control from design to delivery:

• 📐 Custom lens design for target pixel size, spectral range, and mechanical envelope

• 🔬 Ultra-precision aspheric & spherical lens fabrication

• 🧼 Cleanroom assembly & cementing

• 📊 Comprehensive MTF, distortion & centering metrology

• 🧩 Integration of filters, shutters, and IR cut/pass coatings

🔧 Typical Applications

🏭 Machine Vision Systems

Automated defect detection, barcode reading, metrology

🔬 Bio-Medical Imaging

High-resolution cameras for pathology, fluorescence, endoscopy

📦 Industrial QA & Inspection

Detect fine defects on PCB, semiconductors, or surface finishes

🧠 AI Vision Sensors

Edge-AI embedded systems needing pixel-level clarity

📽️ Documentation & Archiving

Ultra-clear lens systems for digitization of manuscripts, slides, and film

🧪 Case Study: 8MP Lens for Smart Factory Camera

Client: European vision integrator
Sensor: 1/1.8", 2.0 µm pixel pitch
Lens: Custom 25 mm, F/2.0, C-mount
Results: 95%+ edge MTF @ 8MP, distortion <0.3%
Volume: 200 pcs/month delivered with full QA certs

🔍 Capture More Detail with Precision Lenses

Yighen’s MegaPixel lens solutions are designed to fully resolve high-resolution sensors, from 5MP to 50MP+, with excellent contrast, low aberrations, and tight alignment tolerances. Perfect for machine vision, industrial inspection, and medical imaging.

📩 Request a Quote for High-Resolution Lenses
Send us your sensor specs, working distance, and application scenario—we’ll design the right megapixel optics for you.

📘 Download Test Reports & CAD Files
View our MTF curves, distortion plots, and lens module specs from the Downloads section.

🏢 Behind the Lens – Meet Yighen
Discover our vertical capabilities—from optical design to high-volume manufacturing—on the About Us page.
