🟦 Optical Mirrors

Precision-Engineered Mirrors for Beam Steering, Imaging & Laser Systems







🔷 High-Performance Optical Mirrors – Designed & Manufactured by Yighen

At Yighen Ultra Precision, we specialize in the design and manufacturing of high-performance optical mirrors for demanding applications in laser systems, imaging devices, biomedical instruments, and optical measurement setups. Whether you need a standard flat mirror or a custom curved, off-axis, or coated mirror, we offer tight-tolerance fabrication and coatings tailored to your needs.

With in-house ultra-precision machining and coating capabilities at our Dongguan facility, we deliver mirrors with exceptional flatness, reflectivity, and surface quality—ready for integration into your optical assemblies.

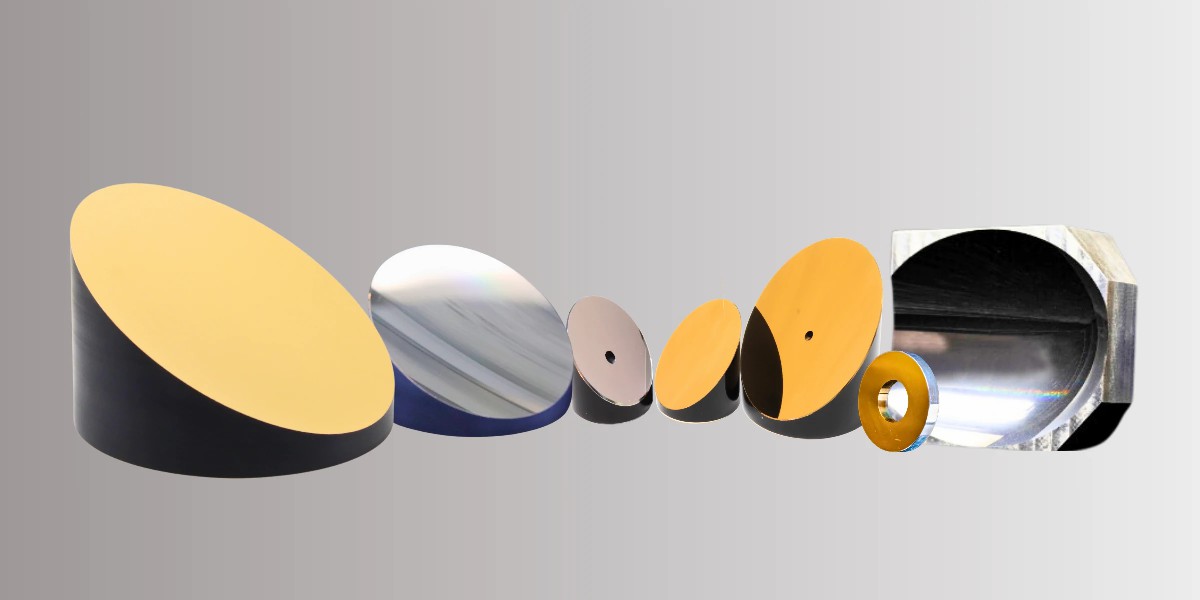

🔶 Types of Optical Mirrors We Offer

We manufacture and customize the following mirror types:

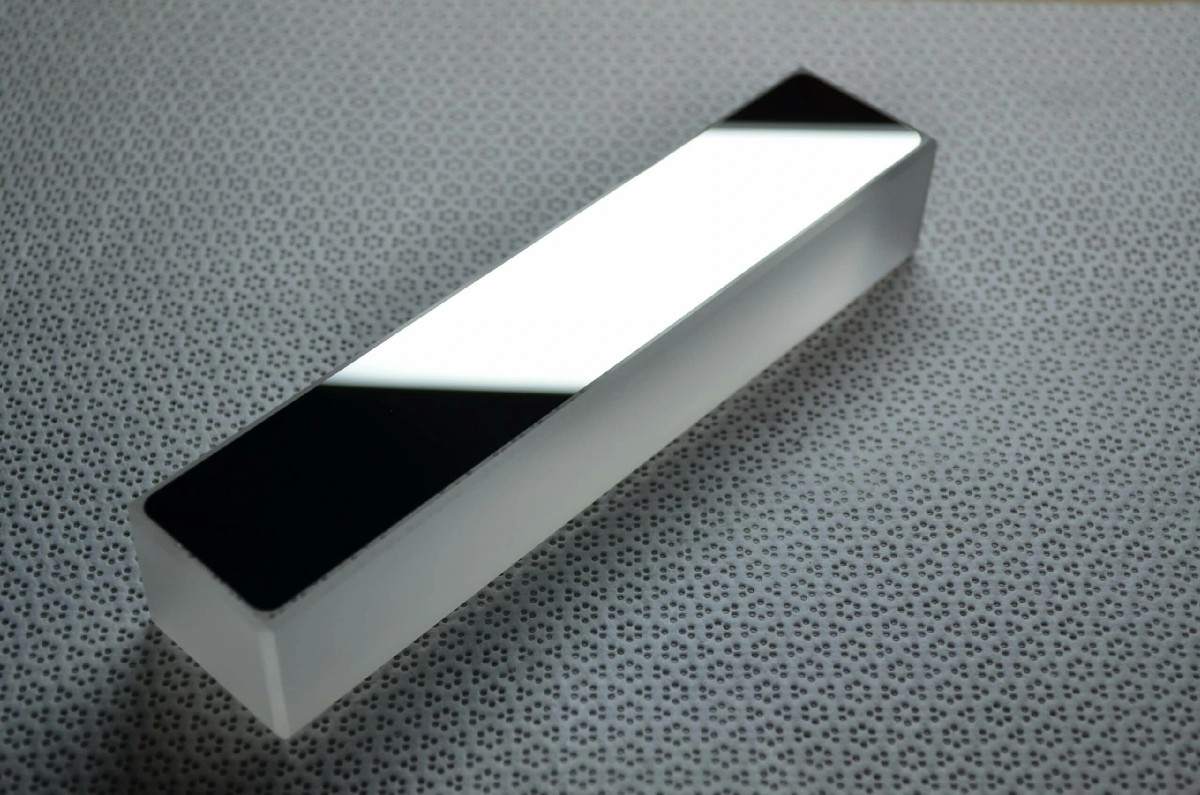

• Flat Mirrors
  Ideal for beam folding, reflection, and optical paths.

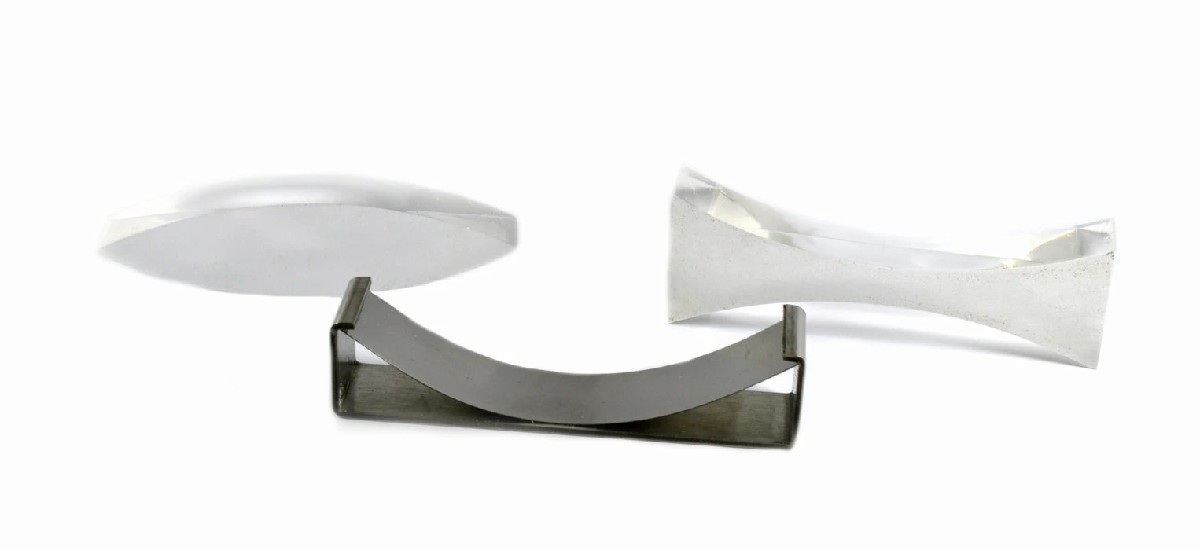

• Concave & Convex Mirrors
  Used for focusing or expanding light in imaging or laser systems.

• Off-Axis Parabolic Mirrors (OAP)
  Ideal for collimation and focusing without introducing spherical aberration.

• Metallic & Dielectric Mirrors
  Coated to optimize reflectivity across UV, visible, NIR, or IR spectra.

• Custom Mirror Shapes
  Elliptical, rectangular, slotted, or with mounting holes for optomechanical integration.





🛠️ Manufacturing Capabilities

Our production lines are equipped with ultra-precision grinding, polishing, and coating systems, enabling high-volume delivery while maintaining optical quality.

Surface Quality

• Flatness: λ/10 to λ/20 (632.8nm)

• Surface roughness: Ra ≤ 2 nm

• Scratch-Dig: 20-10, 10-5 available

• Size range: 1 mm to 250 mm diameter

Substrate Materials

• Fused Silica

• Zerodur®

• Borofloat® Glass

• BK7

• Aluminum, Copper, and Silicon for metal mirrors

Coating Options

• Enhanced Aluminum, Protected Silver, Protected Gold

• Dielectric HR Coatings for specific wavelengths (355 nm, 532 nm, 1064 nm, etc.)

• Laser Damage Threshold (LDT) optimized coatings for high-power applications





🧪 Optical Mirror Applications

Industry	Example Use Case
🔬 Biomedical Imaging	Scan mirrors in OCT, endoscopy, and fluorescence setups
💡 Machine Vision	Beam folding and redirection for optical alignment
🔭 Aerospace & Astronomy	High-reflectivity optics in telescopes and sensors
💥 Laser Systems	Beam expansion, reflection, and isolation
⚙️ Metrology Equipment	Precision mirrors in interferometers and alignment tools





✅ Why Choose Yighen?

• 💎 Sub-nanometer surface polishing

• 🛠️ In-house mirror fabrication and custom shaping

• ⚙️ Advanced CNC polishing + diamond turning

• 🔬 Full-surface metrology (interferometry, profilometry)

• 🕒 Short lead times and high repeatability for volume production





📦 Customization & Delivery

Need non-circular mirrors, pre-drilled mounts, or coatings for extreme environments? We work closely with your engineering team to deliver mirrors that meet your optical and mechanical specifications.

✔ NDA-compliant process
✔ Engineering support available
✔ Rapid prototyping: delivery in 7–14 business days
✔ Volume orders welcome









❓ Frequently Asked Questions

Q: What’s the difference between dielectric and metallic mirrors?
A: Metallic mirrors offer broad reflectance across the spectrum, while dielectric mirrors provide higher reflectivity but are wavelength-specific and angle-sensitive.

Q: Can you make elliptical mirrors for laser scan systems?
A: Yes, we routinely manufacture elliptical mirrors with custom bevels and chamfers for scanning assemblies.

Q: Do you support laser-grade flat mirrors?
A: Absolutely. Our laser mirrors are LDT-optimized and available with 10-5 surface quality and λ/20 flatness.













🪞 Precision Mirrors — Flat, Curved, and Coated for Performance

At Yighen, we fabricate optical mirrors for imaging, beam steering, folding, and laser delivery systems.
From first-surface flats to custom spherical or off-axis paraboloids, we deliver tight surface form, low roughness, and application-specific coatings — all under precise process control.

We work with aluminum, glass, metal substrates, and support coatings for VIS, NIR, and high-power laser applications.

🔵 Request a Custom Mirror Quote
📩 Share your curvature, size, substrate, and coating specs — we’ll respond within 24 hours with feasibility and lead time.

—
