Medical Optics Design

Tailored Optical Engineering for Medical Diagnostics, Imaging & Therapeutics

Optical systems are at the heart of every modern diagnostic and therapeutic innovation. Yighen designs high-performance optics for biomedical research, laboratory instruments, diagnostic applications (such as endoscopy, optical coherence tomography, fluorescence imagers), and surgical or therapeutic systems.

We partner with device manufacturers, research labs, and clinical engineering teams to custom-design and deliver medical optics that meet your technical, regulatory, and cost requirements—fast, reliably, and precisely.

🚀 Why Partner with Yighen?

• ISO 13485 Compliant Engineering & Manufacturing — Ensuring quality systems for medical-device-grade optics.

• Rapid Turnaround & Industry Speed — Prototype feedback within 24 hours; full custom optics delivered up to 20% faster than industry standard.

• Cost-Sensitive Design — From design-through-production, optimized for maximum performance at minimal cost.

🧩 Common Challenges We Solve

Designing optics for medical devices involves unique requirements:

• High precision lens assemblies with micron-level tolerance

• Consistency under variable clinical environments (sterilization, temperature, shock)

• Tight turnaround for diagnostic or clinical product launches

• Regulatory compliance and traceability

• Minimizing cost without compromising optical performance

Yighen handles these complex challenges through integrated optical, mechanical, and production workflows—ensuring consistent results in time-sensitive environments.

👩‍🔬 Our Specialized Medical Optics Capabilities

• Biophotonics & Imaging Device Optics

OCT, endoscope objectives, Raman spectroscopy, fluorescence microscopes, capsule imaging optics and more.

• Micro‑Optics for Minimally-Invasive Devices

Micro-lens arrays, GRIN and micrometer-scale optics, capsule-based systems for point-of-care imaging.

• Precision Optics for Clinical Systems

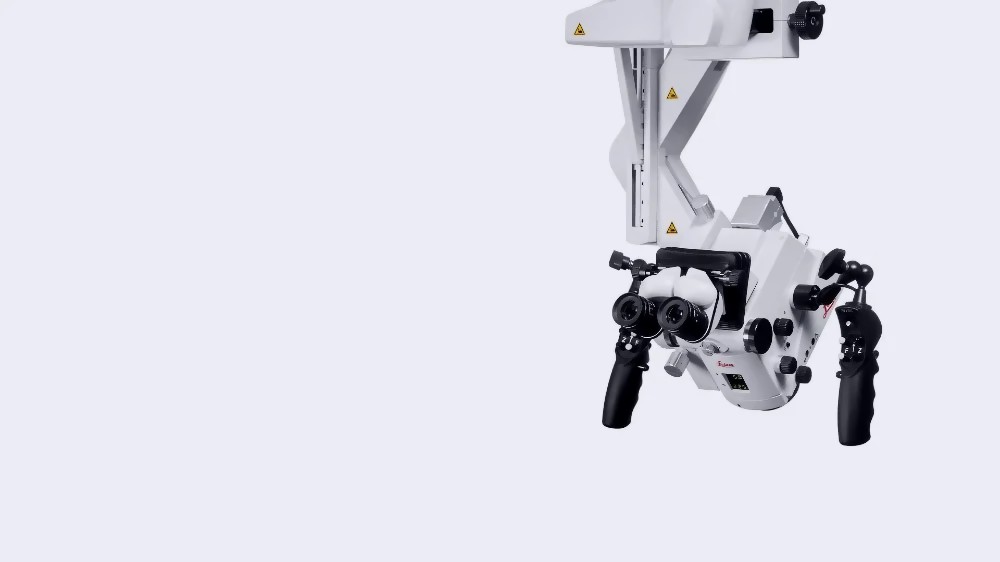

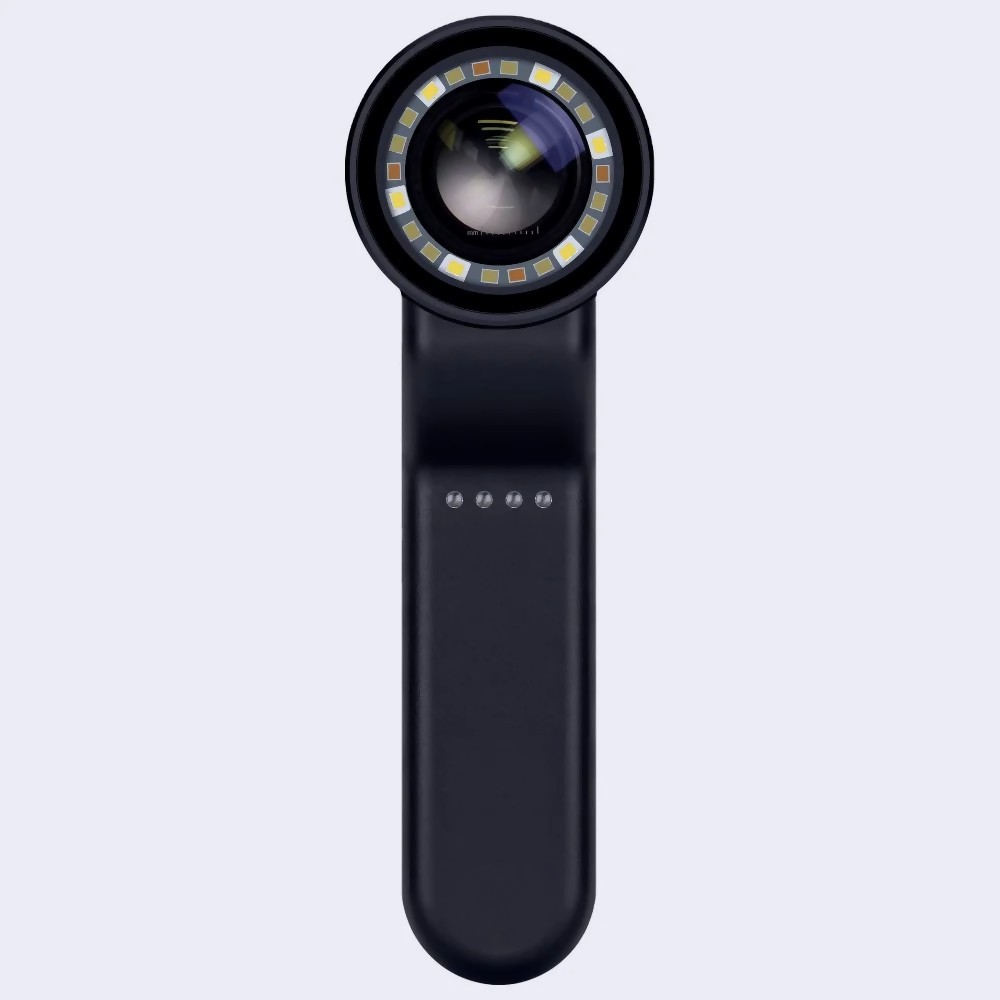

Chromatically corrected lenses for ophthalmic diagnostics, dermoscopy, confocal microscopy, and surgical visualization.

• Light Delivery & Illumination Systems

Beam shaping, fiber coupling, uniform illumination for PCR instruments, surgical lighting, and diagnostic platforms.

• Prototyping & Optical Validation

In-house testing for wavefront aberration, MTF, spectral transmission, and alignment—ready for regulatory use or clinical validation.

🛠 Our End‑to‑End Process

1. Requirement Gathering
   Define clinical use case, imaging targets, sterility, size constraints, and regulatory concerns.

2. Feasibility Assessment & Trade‑Off Analysis
   Optical vs cost vs manufacturability, with early risk mitigation.

3. System & Tolerance Design
   Ray tracing, thermal simulation, chromatic compensation, material suitability.

4. Prototype & Validation Phase
   Rapid fabrication, metrology testing, and clinical-equipment-level validation.

5. Design-for-Manufacturing Transition
   Documented specifications, supplier-ready data, and optical assembly ready for scale.

🌍 Industry Use Cases

• High-resolution imaging for surgical and diagnostic tools

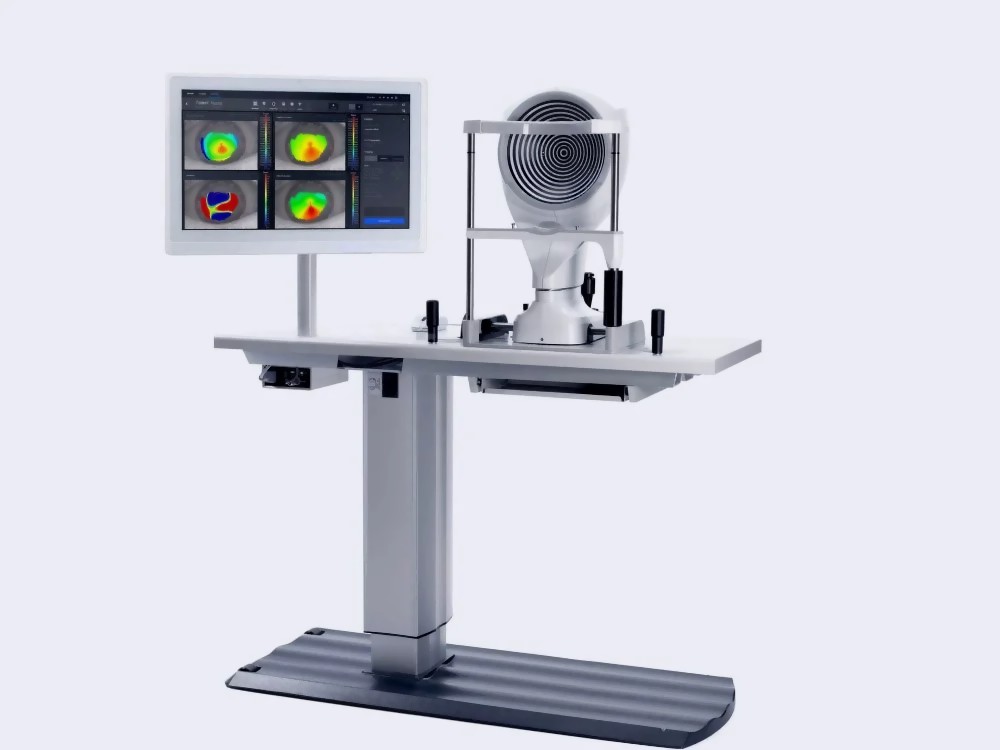

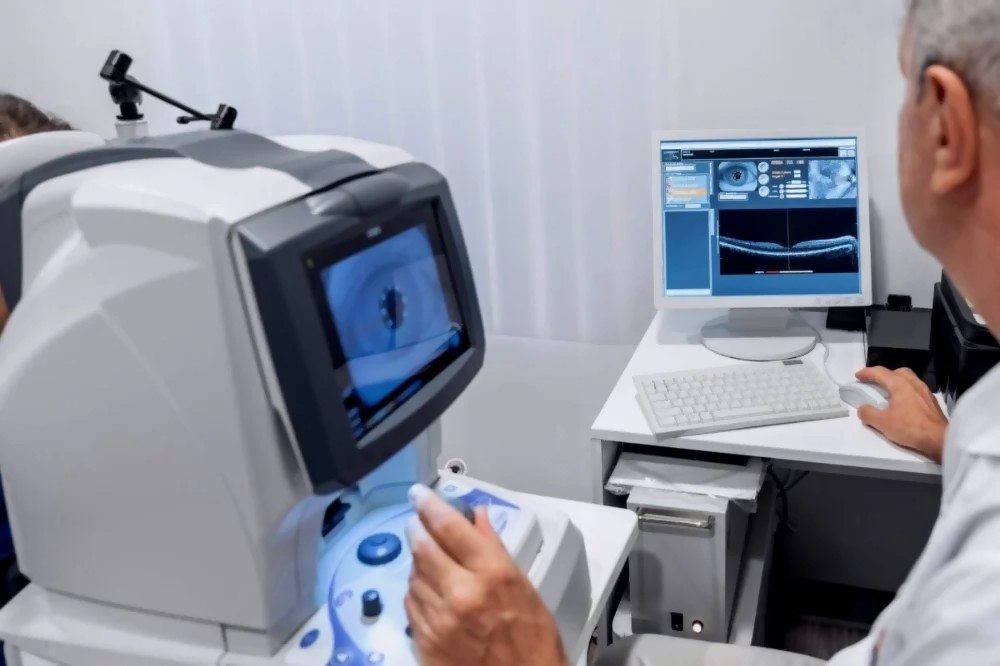

• Ophthalmic measurement systems and surgical optics

• Fluorescence and PCR-based diagnostics for infectious disease

• Compact, sterilizable endoscope or capsule imaging optics

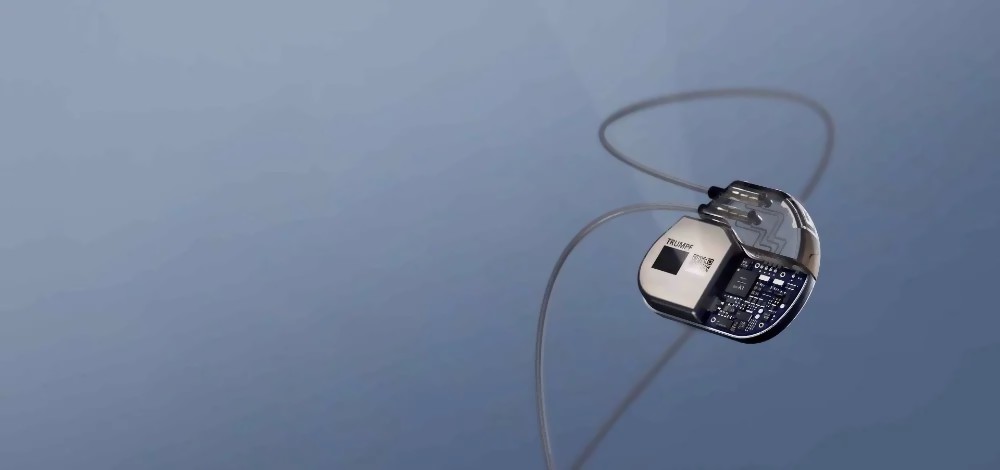

• Long-term stable optics for wearable/implantable medical sensors

🧪 Example: OCT-Enhanced Cataract Surgery Module

Yighen designed an OCT-based scan lens and beam delivery optics to support robotic cataract surgery. The assembly maintained ±5 μm alignment after repeated sterilization and thermal cycling—allowing surgeons to make precise incisions based on live imaging feedback.

🩺 Precision Optics for Life-Saving Technologies

From endoscopic imaging to diagnostic sensors, our team designs medical-grade optical systems with a focus on clarity, biocompatibility, manufacturability, and reliability.

Whether you need compact lens modules, IR-transparent materials, or rapid prototyping for regulatory approval—we support every step from concept to compliance.

🔵 Request a Medical Optics Design Consultation
📩 Share your application or requirements—we'll respond within 24 hours.

—

Want to explore our design and prototyping capabilities?
📄 Download Our Capability Sheet

Want to understand how we support regulated industries?
👤 Learn More About Yighen
